Kit of standard L track Tie-downs 4 pack
Kit of standard L track Tie-downs 4 pack - Image 2
Kit of standard L track Tie-downs 4 pack - Image 3

Kit of standard L track Tie-downs 4 pack

$292.00

◙ LIGHTWEIGHT – 40% lighter than other WC18/19 compliant.
◙ SAFETY COMPLIANCE – WC18/19, ISO 10542, and SAE J2249
◙ EASY INSTALLATION – Requires no special tools (DIY)
◙ HIGH STRENGTH – Premium grade & energy-absorbing steel frame
◙ AUTOMATIC SELF-TENSIONING & LOCKING – Automatically locks during low-g vehicle movements

Estimated Delivery Time (2 Weeks)

SKU: X1-81-100A Category:

Description

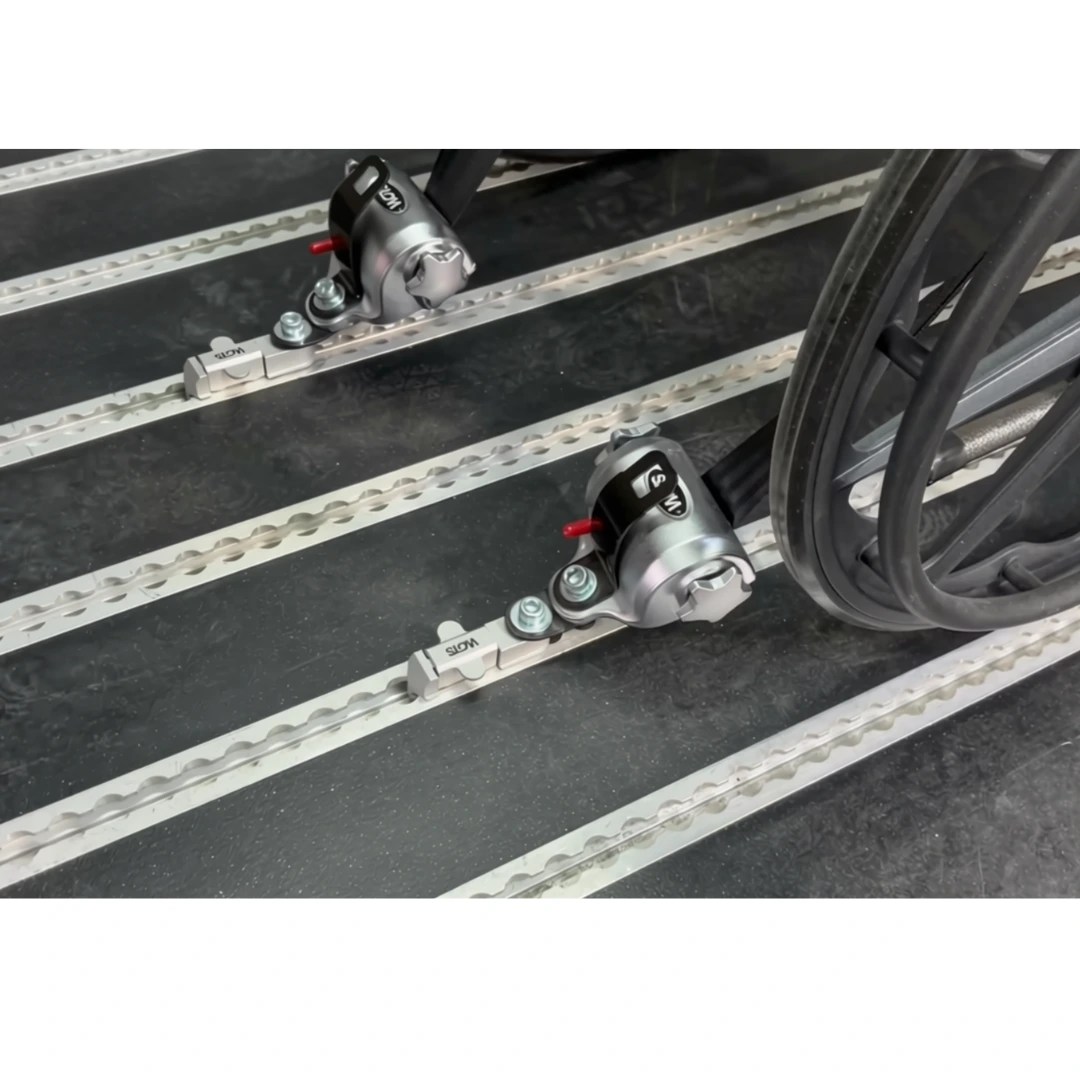

This kit consists of a securement system that is the leader in high safety standards, aesthetic design, and desired functionality in the most cost-efficient way. This system meets all requirements of the higher load of WC18 and is compatible with WC19 wheelchairs. It uses premium material and meets all international standards necessary for wheelchair occupant tie-down systems.

Vehicle Application & Availability Collapse
School Bus, City Bus, Coach Bus, Rail, Community Transport, Mini-Vans, WAV

Installation & User Manual Collapse

Product Warranty

⚠️ Warning ⚠️

Always secure the occupant in the vehicle with a complete WOTS Occupant Restraint System, consisting of lap and shoulder belts. Secure the wheelchair in the vehicle with a WOTS Tie-Down System.

For more information: Please read carefully installation manual in download section.

Parts

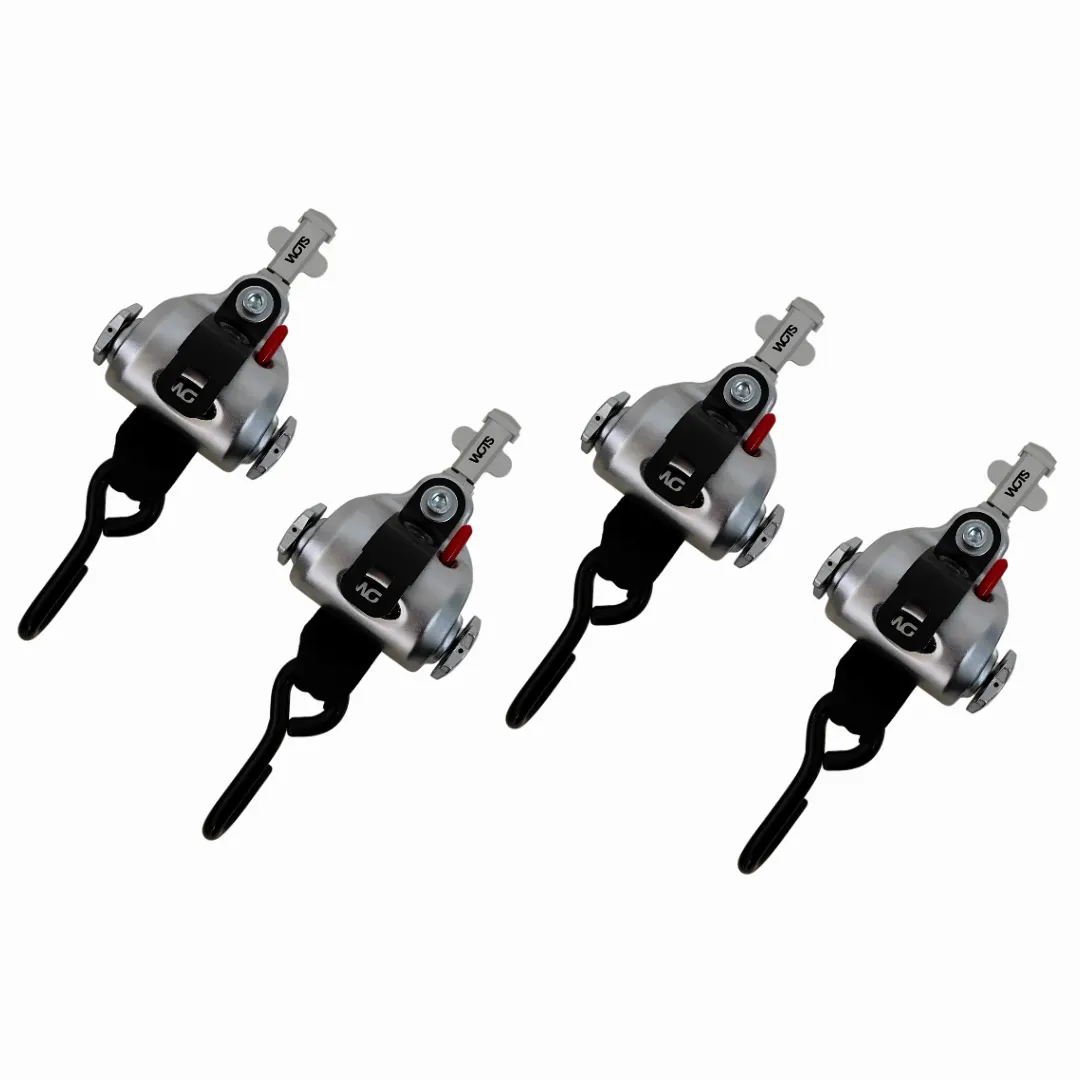

Standard L-Track Retractors



Lap Belt



Shoulder Belt

Standard Compliance

WOTS with a complete kit (kit is comprised of (4) wheelchair tie-downs along with the lap and shoulder belts), l-tracks, and anchorages with proper usage are designed to meet the following requirements:

► Meets the requirements of WC18.

► 30mph/20g Impact Test Criteria per National Standards for School Buses.

► 49 CFR Part 571.222 (FMVSS 222) School Bus Passenger Seating and Crash Protection.

► Certificates of Conformance available upon request.

► 30mph/20g Impact Test Criteria per SAE J2249.

► FMVSS 302 Flammability Test.

► 30mph/20g Impact Test Criteria per Canadian 2605 Standard.

► 49 CFR Part 38 Americans with Disabilities Act (ADA).

Specification

Lightweight

Fabricated with a patented aluminum grade that is more than 40% lighter than any WC18 compliant system available in the market.

Fully Meets WC18/19

Meets the load requirements during a collision as specified by RESNA & WC18 standards. WOTS is also fully compatible with newer WC19 wheelchairs.

High Strength System

WOTS is made of premium grade, high strength, energy-absorbing steel frame to meet the high load requirements of WC18 standards.

Thicker Webbing

WOTS is made up of 1.6 mm thick webbing which can take up higher loads of WC18 standards.

Highly Durable

Made up of premium grade hardened steel with a durable coating for maximum corrosion resistance.
