WOTS Fixed Shoulder & Lap Belt
$95.00
◙ Secure static fit – Manually adjustable fixed shoulder belt.
◙ Comfort with safety – 1.6 mm webbing compliant with WC18.
◙ Compliance – FMVSS/CMVSS and SAE J2249 compliant.
◙ Occupant Restraints Only – Includes a lap belt and a fixed shoulder belt.
◙ Compatibility – Only compatible with WOTS tie-down securement system.
Estimated Delivery Time (2 Weeks)
Description
The WOTS Fixed Shoulder and Lap Belt is designed to safely secure wheelchair occupants during transit with a focus on stability and simplicity. Unlike auto-retracting belts, this fixed system allows for a precise, manually adjusted fit that stays constant throughout the ride, making it ideal for passengers who prefer a static restraint.
This belt system integrates easily with your existing WOTS tie-down setup and includes design elements like the plastic retainer, which eases the attachment process to floor units. The shoulder belt features a manual slider, allowing operators to customize the length for proper placement across the occupant’s torso.
Vehicle Application & Availability Collapse
School Bus, City Bus, Coach Bus, Rail, Community Transport, Mini-vans, WAV
Installation & User Manual Collapse
Limited Warranty Coverage
- 3-year limited warranty coverage
⚠️ Warning ⚠️
Always secure the occupant in the vehicle with a complete WOTS Occupant Restraint System, consisting of lap and shoulder belts. Secure the wheelchair in the vehicle with a WOTS Tie-Down System.
For more information: Please read carefully installation manual in download section.
Parts
Standard L-Track Retractors

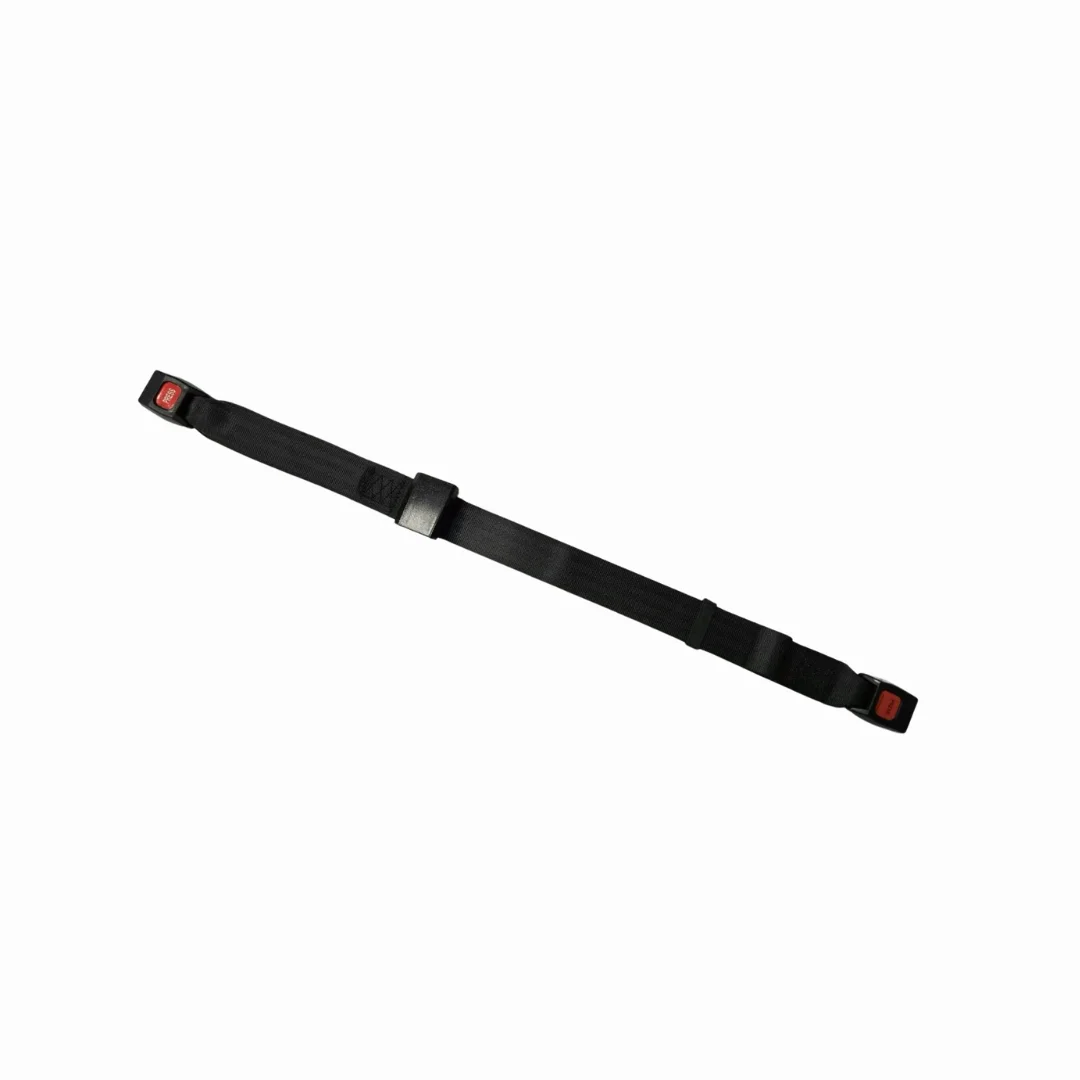

Lap Belt

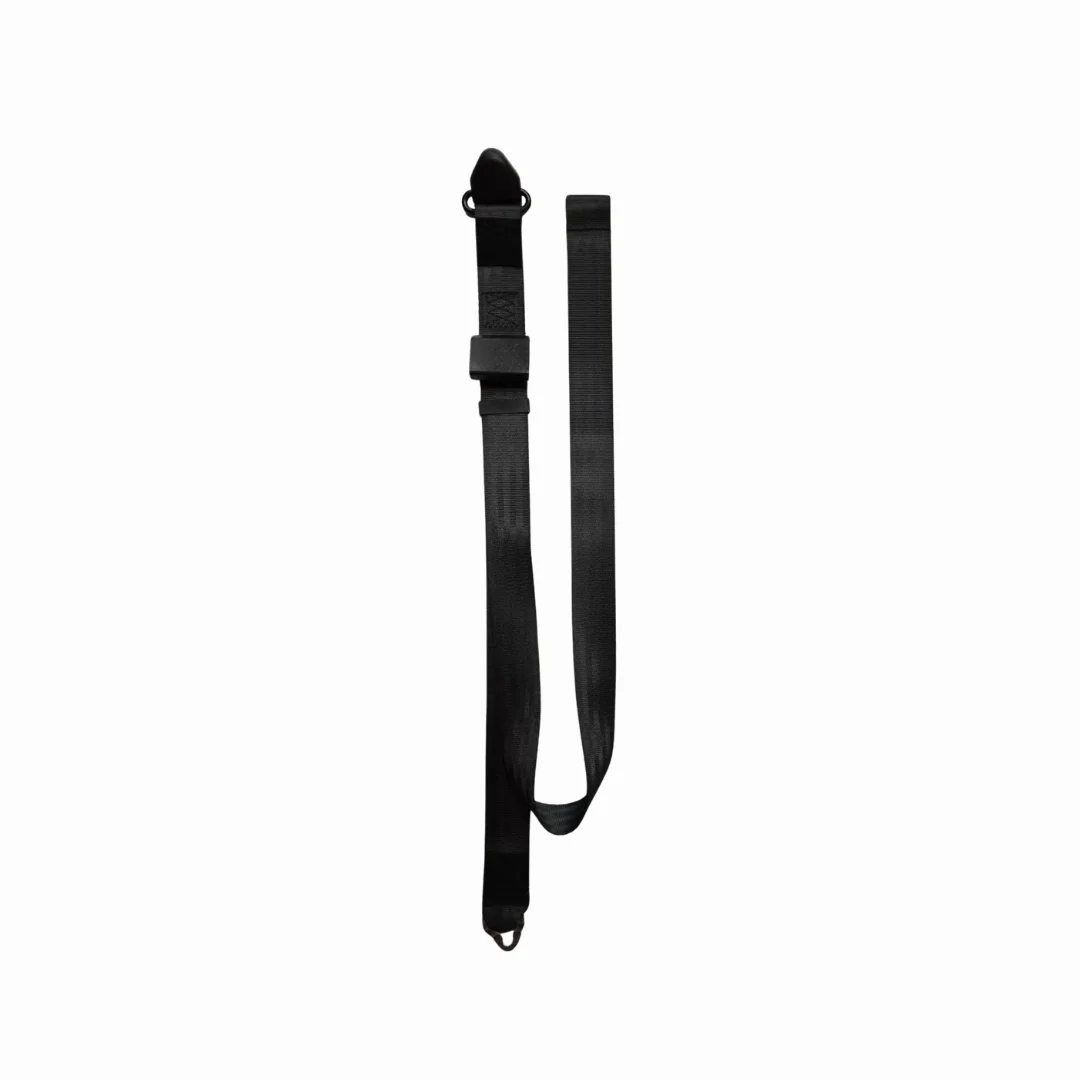

Shoulder Belt
Standard Compliance
WOTS with a complete kit (kit is comprised of (4) wheelchair tie-downs along with the lap and shoulder belts), l-tracks, and anchorages with proper usage are designed to meet the following requirements:
► Meets the requirements of WC18.
► 30mph/20g Impact Test Criteria per National Standards for School Buses.
► 49 CFR Part 571.222 (FMVSS 222) School Bus Passenger Seating and Crash Protection.
► Certificates of Conformance available upon request.
► 30mph/20g Impact Test Criteria per SAE J2249.
► FMVSS 302 Flammability Test.
► 30mph/20g Impact Test Criteria per Canadian 2605 Standard.
► 49 CFR Part 38 Americans with Disabilities Act (ADA).
Specification
Lightweight
Fabricated with a patented aluminum grade that is more than 40% lighter than any WC18 compliant system available in the market.
Fully Meets WC18/19
Meets the load requirements during a collision as specified by RESNA & WC18 standards. WOTS is also fully compatible with newer WC19 wheelchairs.
High Strength System
WOTS is made of premium grade, high strength, energy-absorbing steel frame to meet the high load requirements of WC18 standards.
Thicker Webbing
WOTS is made up of 1.6 mm thick webbing which can take up higher loads of WC18 standards.
Highly Durable
Made up of premium grade hardened steel with a durable coating for maximum corrosion resistance.
