WOTS Full Kit with Fixed Shoulder & Lap Belt
$437.00
◙ Lightweight – 40% lighter than other WC18/19 compliant systems.
◙ Safety Compliance – WC18/19, ISO 10542, and SAE J2249
◙ Easy Installation – Requires no special tools (DIY)
◙ High Strength – Premium grade & energy-absorbing steel frame
◙ Thicker Webbing – 1.6 mm thick webbing
◙ Fixed Shoulder & Lap Belt – Manually adjustable belts.
Estimated Delivery Time (2 Weeks)
Description
WOTS (Wheelchair Occupant Tie-Down System) is a 4-point securement system engineered for safety, durability, and ease of use, making it an essential solution for wheelchair transport in mobility vans, school buses, city buses, and mini-vans. Built from high-grade aluminum components, it is 40% lighter than other WC18/19-compliant systems on the market, ensuring effortless handling without compromising strength.

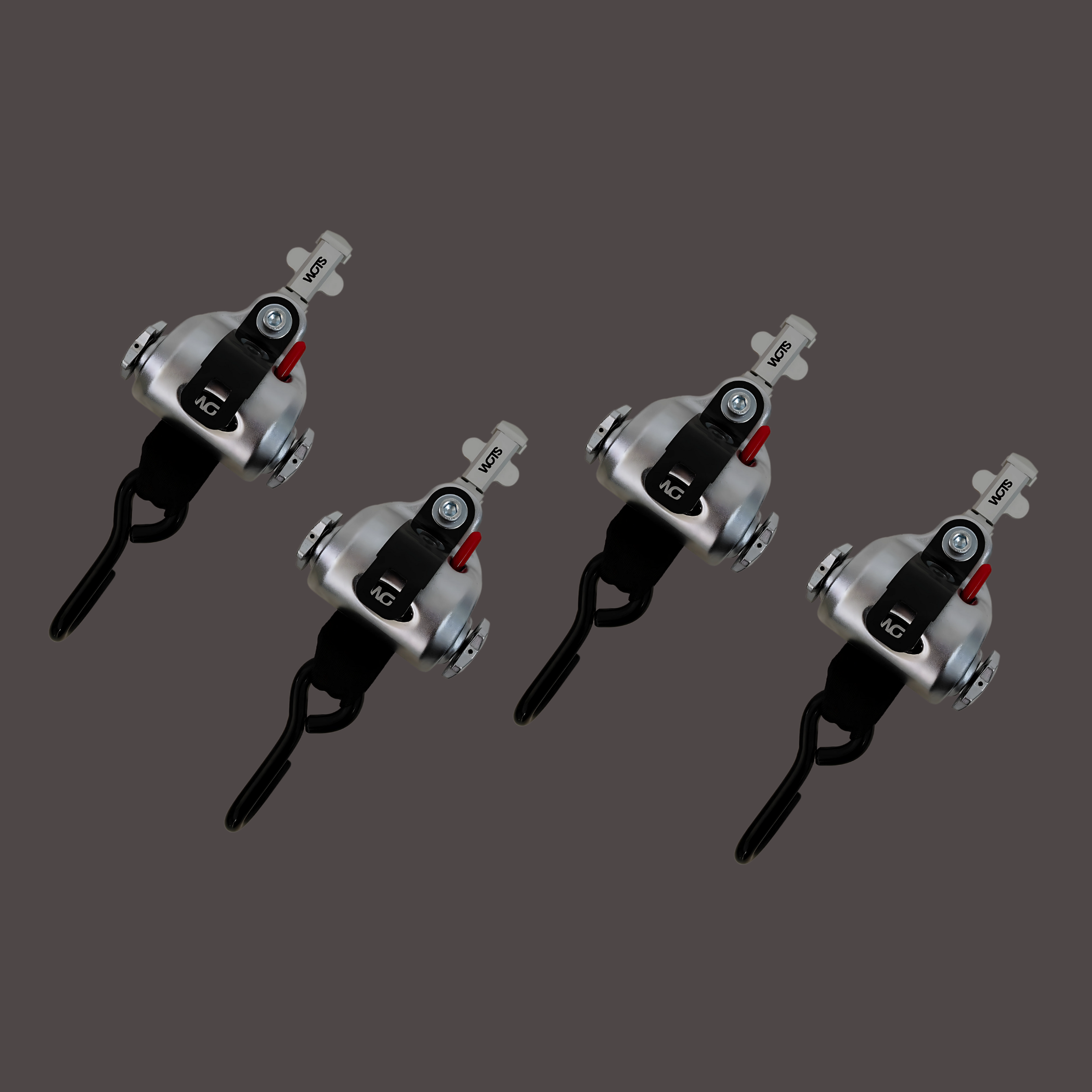

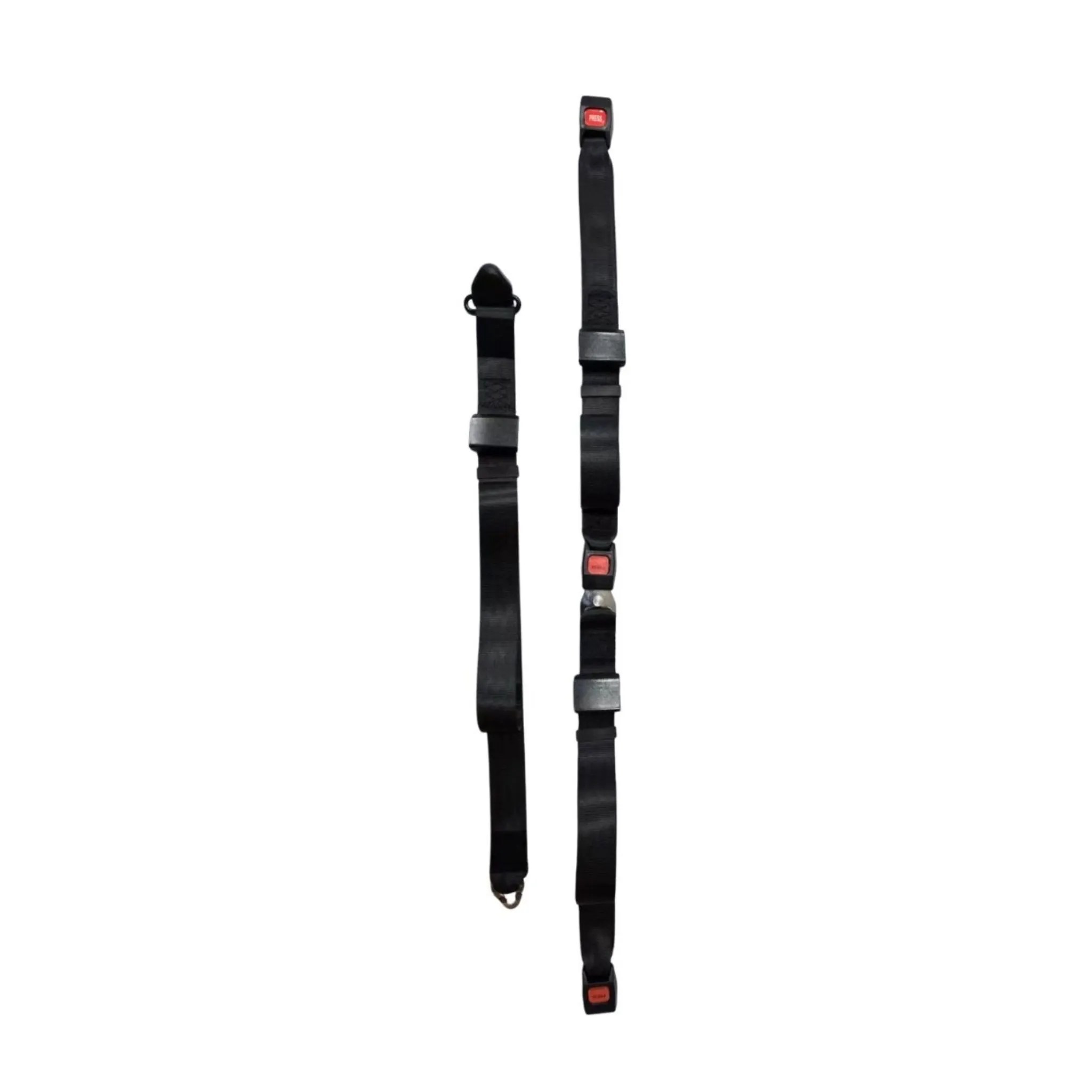

This complete kit includes four lightweight aluminum tie-downs equipped with heavy-duty J-hook connectors for secure wheelchair attachment. It also comes along with a manually adjustable lap belt and a fixed shoulder belt, providing a fully integrated occupant restraint solution ready for installation.
Vehicle Application & Availability Collapse
School Bus, City Bus, Coach Bus, Rail, Community Transport, Mini-vans, WAV
Installation & User Manual Collapse
Limited Warranty Coverage
- 3-year limited warranty coverage
⚠️ Warning ⚠️
Always secure the occupant in the vehicle with a complete WOTS Occupant Restraint System, consisting of lap and shoulder belts. Secure the wheelchair in the vehicle with a WOTS Tie-Down System.
For more information: Please read carefully installation manual in download section.
Parts
Standard L-Track Retractors
Lap Belt
Shoulder Belt
Standard Compliance
WOTS with a complete kit (kit is comprised of (4) wheelchair tie-downs along with the lap and shoulder belts), l-tracks, and anchorages with proper usage are designed to meet the following requirements:
► Meets the requirements of WC18.
► 30mph/20g Impact Test Criteria per National Standards for School Buses.
► 49 CFR Part 571.222 (FMVSS 222) School Bus Passenger Seating and Crash Protection.
► Certificates of Conformance available upon request.
► 30mph/20g Impact Test Criteria per SAE J2249.
► FMVSS 302 Flammability Test.
► 30mph/20g Impact Test Criteria per Canadian 2605 Standard.
► 49 CFR Part 38 Americans with Disabilities Act (ADA).
Specification
Lightweight
Fabricated with a patented aluminum grade that is more than 40% lighter than any WC18 compliant system available in the market.
Fully Meets WC18/19
Meets the load requirements during a collision as specified by RESNA & WC18 standards. WOTS is also fully compatible with newer WC19 wheelchairs.
High Strength System
WOTS is made of premium grade, high strength, energy-absorbing steel frame to meet the high load requirements of WC18 standards.
Thicker Webbing
WOTS is made up of 1.6 mm thick webbing which can take up higher loads of WC18 standards.
Highly Durable
Made up of premium grade hardened steel with a durable coating for maximum corrosion resistance.
